LNX-C500-T

Compact 5-Port Industrial Unmanaged Ethernet Switch, w/ 5*10/100Tx. EOT: -40° ~ 75°C

Antaira Technologies LNX-500A industrial unmanaged Ethernet switch is a leading low price solution for all automation or industrial networking projects. This Fast Ethernet supporting 5-port switch supports 10/100 Mbps Auto-Negotiation and has a wide DC power input design (12 – 48VDC) to allow for all types of applications such as on-vehicle or panel designs.

Each port on LNX-500A has two LED lights to easily indicate link status and transmission speed. This ruggedized unmanaged Ethernet switch also supports Auto MDI/MDI-X function and is also UL Class 1, Division 2 certified for oil and gas applications. LNX-500A is packaged in a slim and compact size while being secured in a rugged IP-30 case that is DIN-RAIL ready for industrial applications.

  • Compact Industrial Grade Design
  • Supports 5*10/100Tx
  • Supports Auto MDI/MDI-X Function
  • Store-and-Forward Switching Architecture
  • 8K MAC Address Table
  • Surge Protection: 2,000 VDC Support
  • ESD Protection: 6,000 VDC Support
  • Redundant Power Input Design: 12~48VDC
  • IP30 Rugged Metal Case Design
  • DIN-Rail and Wall Mount Support
  • Extended Operating Temperature Range: -40° to 75° C
  • 5-Year Warranty
Technology
IEEE Standards IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3x Flow Control
Processing Type Store and Forward
Protocol CSMA/CD
Flow Control IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count 5 ports
10/100 BASE-T(X) 5 ports
Performance
MAC Table Size 8K
Memory Buffer 448kbits
Transfer Rate 14,880pps for Ethernet Port
148,800pps for Fast Ethernet Port
Switching Architecture Back-Plane (Switching Fabric): 1Gbps
Power Requirements

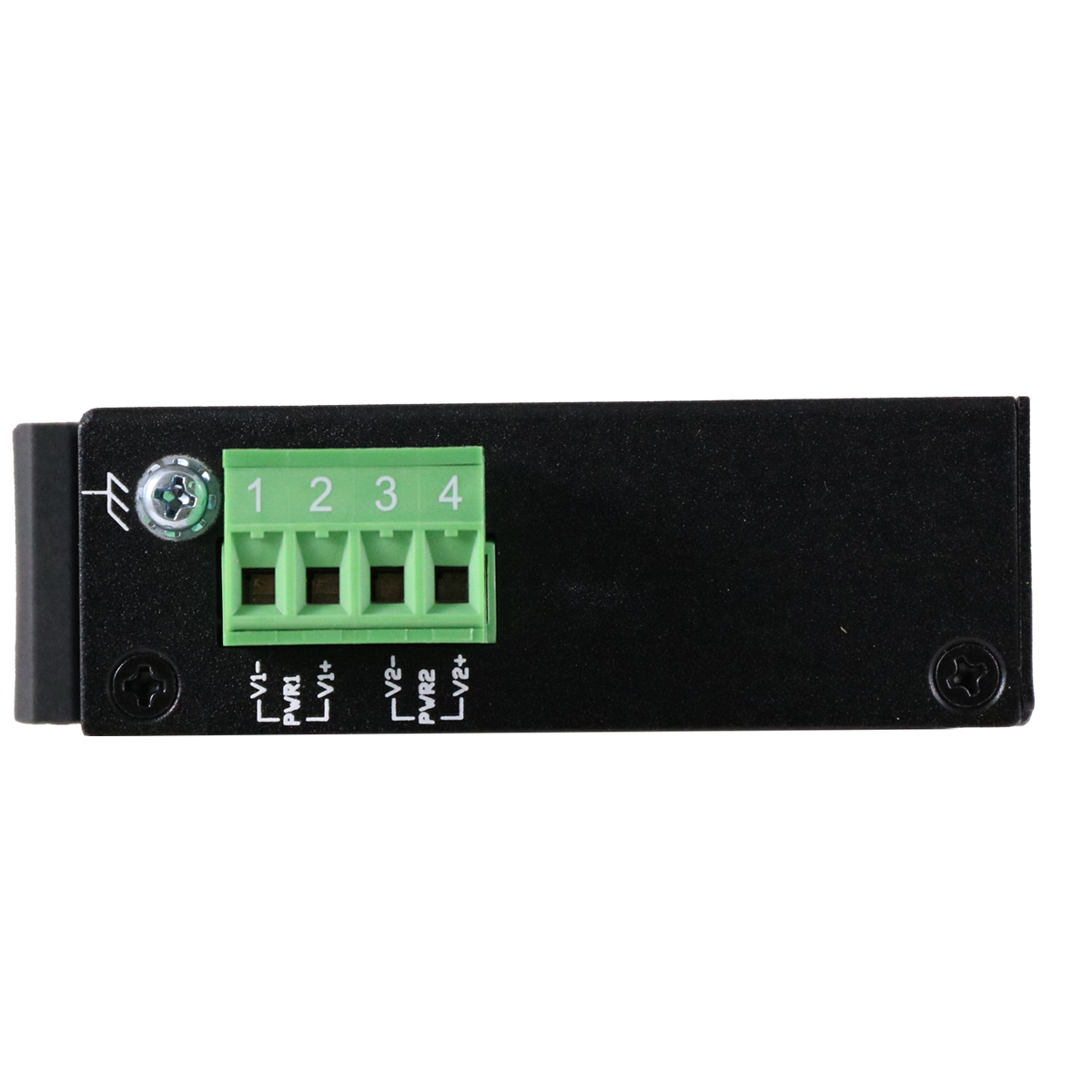

Power Connection Removable 4-contact terminal block
Input Voltage 12V–48V DC, Redundant Input
Power Redundancy Yes
System Power Consumption 1.2 Watts
Overload Current Protection Present
Reverse Polarity Protection Present
Environmental Limits
Operating Temperature -40° to 75° C (-40° to 167° F)
Storage Temperature -40° to 85° C (-40° to 185° F)
Ambient Relative Humidity 5% to 95% non-condensing
Mechanical Characteristics
Housing Metal, IP30 protection
Mounting DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D) 26 × 95 × 75 mm
Weight Unit weight : 1.0 lbs
Shipping weight : 1.5 lbs
Regulatory Approvals
Certifications FCC, CE
UL 61010-1 / UL 61010-2-201
EMI FCC Part 15 Subpart B Class A
CE EN 55032 Class A
EN 61000-6-4 Class A
EMS CE EN 55024 Class A
EN 61000-6-2 Class A
IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field)
Stability Testing Free Fall: IEC60068-2-32
Shock: IEC60068-2-27
Vibration: IEC60068-2-6
Green RoHS Compliant
Warranty 5 years
  • DIN-Rail and Wall Mounting Brackets
  • LNX-C500-T
  • DC Cable - 18 AWG with DC jack 5.5x2.1mm
