LNP-0500G-24-T
5-Port Industrial PoE+ Unmanaged Gigabit Ethernet Switch w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx. 12~36V DC Power Input Support. EOT: -40° ~ 75°C
Product WarrantySee details >
0%
Introduction

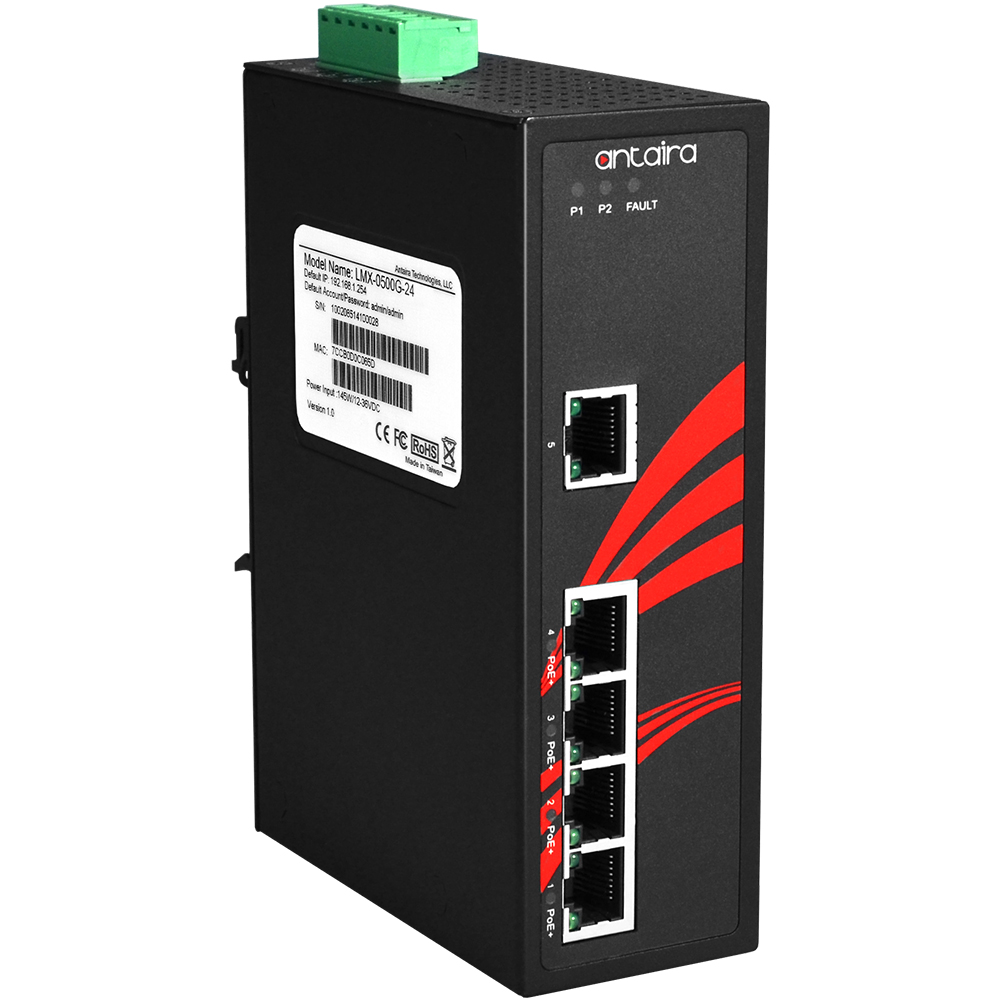

Antaira Technologies’ LNP-0500G-24-T is an industrial gigabit PoE+ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. LNP-0500G-24 is an ideal solution for rapid, unmanaged gigabit network expansion with PoE+ capabilities.
LNP-0500G-24-T is IP30 rated and DIN-rail mountable and has an extended temperature range -40° to 75° C. This product also supports a low voltage power input range of 12~36VDC. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as, security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.
Features
- Supports 4*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, and 1*10/100/1000Tx Port, Auto MDI
- Store-and-Forward Switching Architecture
- 10Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection 2,000 VDC Support
- ESD Protection 6,000 VDC Support
- Redundant Power Input Design: 12~36VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support Included
- Operating Temp. - EOT: -40~75C
- 5-Year Warranty
Package Content
- 1 - LNP-0500G-24-T
- 2 - Wall Mounting Brackets and Screws
- 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
Optional Accessories
-
- DIN-RACK-2U
- Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
Related Resources
Panel Component Design for Multiple Application Solutions
Panel Component Design for Multiple Application Solutions
Security & Surveillance
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
May 16, 2022
Persistent PoE Power for Uninterrupted Operation with Antaira Managed bt PoE Switches
Persistent PoE Power for Uninterrupted Operation with Antaira Managed bt PoE Switches
July 19, 2021
Panel Component Design for Multiple Application Solutions
Panel Component Design for Multiple Application Solutions
May 23, 2024
Facilitating 24/7 City Surveillance with High-Power PoE
Facilitating 24/7 City Surveillance with High-Power PoE
August 11, 2022
Simplifying Network for Onboard Surveillance and Bus Operation
Simplifying Network for Onboard Surveillance and Bus Operation
June 01, 2022
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3x Flow Control
- IEEE 802.3af/at Power over Ethernet
Processing Type
Store and Forward
Protocol
CSMA/CD
Flow Control
IEEE 802.3x flow control, back pressure flow control
Performance
MAC Table Size
8K
Jumbo Frame
10 Kbytes
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Switching Architecture
Back-Plane (Switching Fabric): 10Gbps
Ethernet Interface
Ethernet Port Count
5 ports
10/100/1000 BASE-T(X)
5 ports
PoE Port
4 ports (30W/port)
PoE Pin Assignment
V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
Mechanical Characteristics
Housing
Metal, IP30 protection
Mounting
DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)
46 × 142 × 99 mm
Weight
- Unit weight : 1.6 lbs
- Shipping weight : 2.1 lbs
Power Requirements
Power Connection
Removable 6-contact terminal block
Input Voltage
12V–36V DC, Redundant Input
Power Redundancy
Yes
Relay Output
24V DC, 1A resistive
System Power Consumption
25 Watts
Max. PoE Power Budget
120 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Environmental Limits
Operating Temperature
-40° to 75° C (-40° to 167° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity
5% to 95% non-condensing
Regulatory Approvals
Certifications
FCC, CE
UL 61010-1 / UL 61010-2-201
✔
ISA 12.12.01 (UL C1D2)
✔
EMI
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
Green
RoHs Compliant
Warranty
5 years
