LNX-1204G-SFP
12-Port Industrial Gigabit Unmanaged Ethernet Switch, w/ 8*10/100/1000Tx + 4*100/1000 SFP Slots
Product WarrantySee details >
0%
Introduction

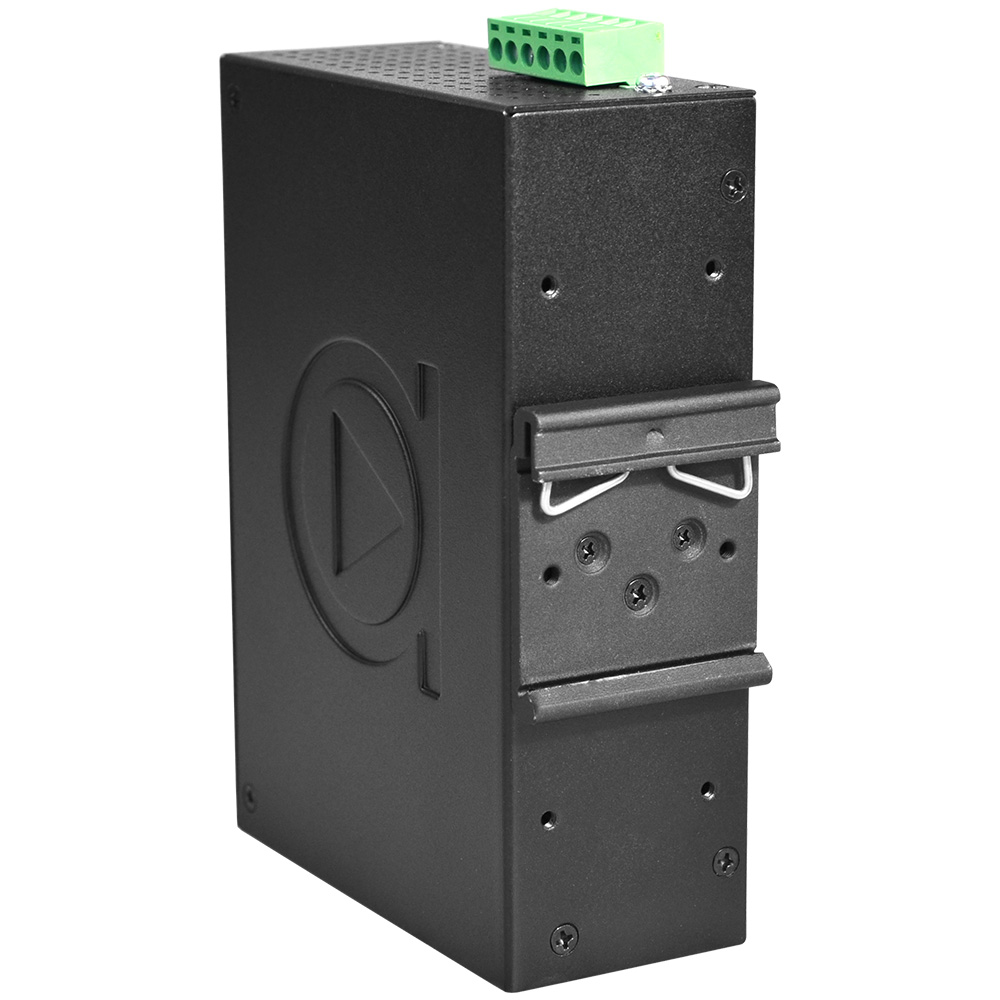

Antaira’s new LNX-1204G-SFP industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with 8 gigabit Ethernet ports and 4 dual rate (100/1000) SFP slots for fiber connections, making it ideal for applications that demand high bandwidth and long distance communication.
This model provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It also a supports standard operating temperature from -10 to 70° C.
LNX-1204G-SFP is a perfect industrial networking product to support any applications that require high bandwidth or high density connections, such as Power/Utility, Water Wastewater Treatment, Oil/Gas/Mining, Process Control Automation, Security Access Control Systems, and Intelligent Transportation Systems.
Features
- Supports 8*10/100/1000Tx + 4*100/1000 SFP ports
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 24Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range: -10° to 70° C
- 5-Year Warranty
Package Content
- 1 - LNX-1204G-SFP
- 2 - Wall mounting brackets and screws
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
Download
Optional Accessories
-
- CBF-LC01LC-MD
- LC To LC 1 Meter Multi-Mode Duplex
-
- DIN-RACK-2U
- Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height
-
- MDR-60-48
- 60 Watt Series / 48 VDC / 1.25 Amps Industrial Slim Single Output DIN Rail Power Supply
-
- SFP-M
- 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, 0º~70ºC
-
- SFP-S10
- 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, 0º~70ºC
Related Resources
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
PoE, PoE+ and PoE++: Choosing the Right Industrial Ethernet Switch for You
May 16, 2022
Advanced Industrial Managed Ethernet Switches
Advanced Industrial Managed Ethernet Switches
October 18, 2018
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3z 1000Base-X Gigabit Fiber
- IEEE 802.3x Flow Control
Processing Type
Store and Forward
Protocol
CSMA/CD
Flow Control
IEEE 802.3x flow control, back pressure flow control
Performance
MAC Table Size
8K
Jumbo Frame
9.6 Kbytes
Memory Buffer
4Mbits
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Switching Architecture
Back-Plane (Switching Fabric): 24Gbps
Ethernet Interface
Ethernet Port Count
8 ports
10/100/1000 BASE-T(X)
8 ports
Fiber Interface
Fiber Port Count
4 ports
100/1000 BASE-(F)X SFP
4 ports
Wavelength
Refers to SFP module
Other Interface
LED Indicator
- System: Power 1, Power 2, Fault
- Ethernet Ports: On-Link/Flash-data transmitting
- SFP: Link/Active
Mechanical Characteristics
Housing
Metal, IP30 protection
Mounting
DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)
46 × 142 × 99 mm
Weight
- Unit weight : 1.64 lbs
- Shipping weight : 2.05 lbs
Power Requirements
Power Connection
Removable 6-contact terminal block
Input Voltage
12V–48V DC, Redundant Input
Power Redundancy
Yes
Relay Output
24V DC, 1A resistive
System Power Consumption
10 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Environmental Limits
Operating Temperature
-10° to 70° C (14° to 158° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity
5% to 95% non-condensing
Regulatory Approvals
Certifications
FCC, CE
UL 508
✔
UL 61010-1 / UL 61010-2-201
✔
EMI
- FCC Part 15 Subpart B Class A
- CE EN 55022 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024/EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
Green
RoHS Compliant
Warranty
5 years
Download
Datasheet
Models
-
- LNX-1204G-SFP-T
- 12-Port Industrial Gigabit Unmanaged Ethernet Switch, w/ 8*10/100/1000Tx + 4*100/1000 SFP Slots. EOT: -40° ~ 75°C
